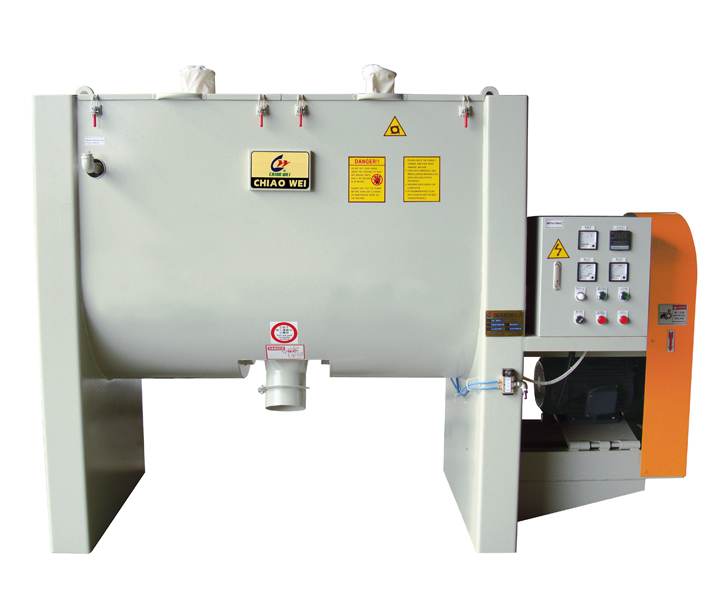

HORIZONTAL DRYING / BLENDING MACHINE

Horizontal Blending Machine

APPLICATION
The complete set is very suitable for the hi-speed blending of plastic powder and pellets for making plastic floor tiles, wall tiles wire, cable, FRP doors & windows and Christmas trees.
DESCRIPTION

Above of CW-D1000 are large horizontal dryers, which are suitable for mixing and drying plastic raw materials in particles or powders. And it dried surface moisture of the material by heat conduction. It is suitable for equipment of the front or back process in extrusion. And it is also suitable for two kinds of additives pre-mixing, so that can makes material well-mixing more quickly and efficiently. Even if the material has a difference specific gravity and particle size, then also can achieved very good mixing effect by blending staggered blades. This equipment is special for water pipes, plastic floors, wall panels, plastic floor tiles, wires and cables, plastic steel doors, windows, etc.


SPECIFICATION
Model Tank Vol. Power Machine Weight Machine Size Compatible Model
CW-H200 200L 3HP 800kg 1200 x 900 x 1400 mm Employed with 100L capacity high speed mixer
CW-H300 300L 3HP 900kg 1300 x 950 x 1500 mm Employed with 150L capacity high speed mixer
CW-H400 400L 5HP 1100kg 1600 x 1200 x 1600 mm Employed with 200L capacity high speed mixer
CW-H600 600L 3HP 1200kg 1700 x 1350 x 1800 mm Employed with 300L capacity high speed mixer
CW-H800 800L 7.5HP 1250kg 2360 x 920 x 1900 mm Employed with 400L capacity high speed mixer
CW-H1000 1000L 7.5HP 1300kg 2600 x 1060 x 2050 mm Employed with 500L capacity high speed mixer
CW-H1500 1500L 10HP 2900kg 2850 x 1100 x 2150 mm Employed with 750L capacity high speed mixer
CW-H2000 2000L 15HP 2900kg 3200 x 1350 x 2250 mm Employed with 1000L capacity high speed mixer
CW-H3000 3000L 15HP 4500kg 3700 x 1450 x 2400 mm Employed with 1200L capacity high speed mixer
*Above sizes are for reference only.
