HI-SPEED MIXER / VERTICAL COOLING BLENDER

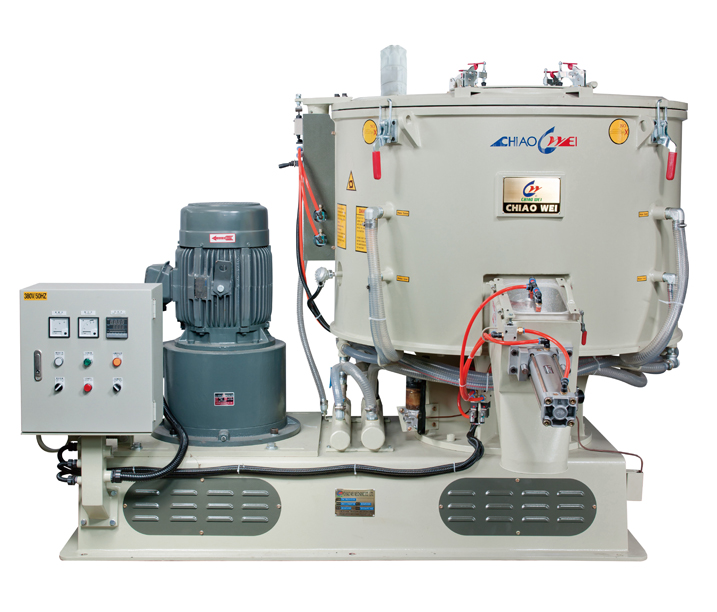

Vertical Cooling Blender Series (ELD Model)

APPLICATION
The complete set is very suitable for the hi-speed blending of plastic powder and pellets for making plastic floor tiles, wall tiles wire, cable, FRP doors & windows and Christmas trees.
MORE PRODUCTS INQUIRY
SPECIFICATION
Model Tank Vol. Power Machine Weight Machine Size Compatible Model
CW-ELD200 200L 5HP 800kg 1950 x 1480 x 1670 mm Employed with 100L capacity high speed mixer
CW-ELD300 300L 7.5HP 900kg 2095 x 1550 x 1775 mm Employed with 150L capacity high speed mixer
CW-ELD400 400L 10-15HP 1100kg 2155 x 1680 x 1875 mm Employed with 200L capacity high speed mixer
CW-ELD600 600L 15-20HP 1200kg 2235 x 1885 x 1935 mm Employed with 300L capacity high speed mixer
CW-ELD800 800L 20-25HP 1250kg 2435 x 2060 x 2010 mm Employed with 400L capacity high speed mixer
CW-ELD1000 1000L 30-40HP 1300kg 2540 x 2140 x 2150 mm Employed with 500L capacity high speed mixer
CW-ELD1500 1500L 40-50HP 2900kg 2850 x 2320 x 2280 mm Employed with 750L capacity high speed mixer
CW-ELD2000 2000L 50-60HP 2900kg 3750 x 1725 x 2530 mm Employed with 1000L capacity high speed mixer
CW-ELD3000 3000L 60-75HP 4500kg 4100 x 2000 x 2800 mm Employed with 1200L capacity high speed mixer
*Above sizes are for reference only.
